1U Germany Type 6 ways Server Rack PDU
1U Germany Type 6 ways Server Rack PDU

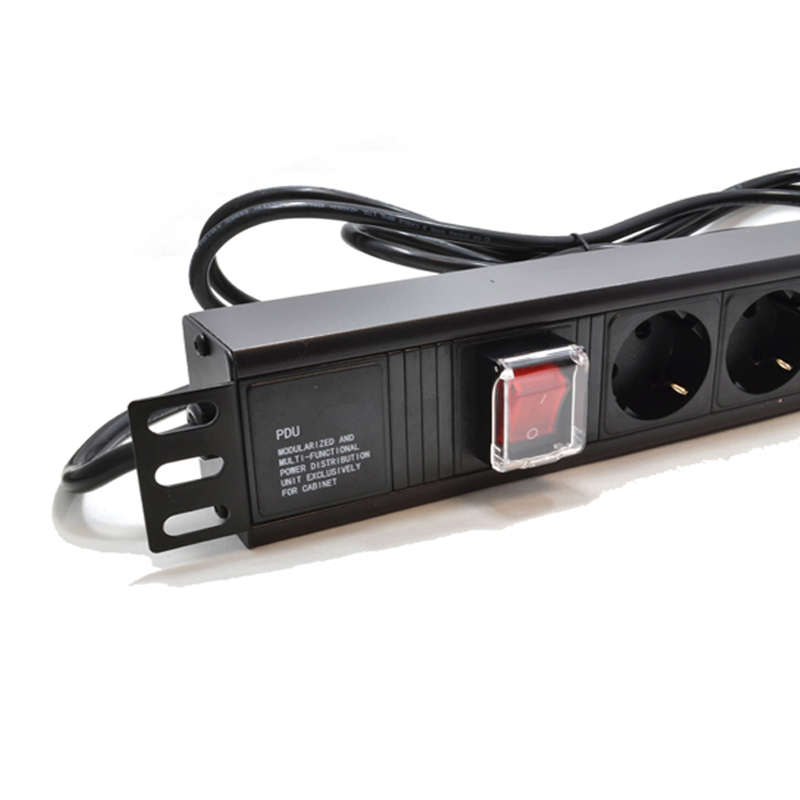

1U 6Ways Germany Type Switched 16 Amp Server Rack PDU, with Aluminum-Alloy or Plastic shell
It's the most popular for installed inside of the Cabinet.
PDU, Power Distribution Unit, is designed for installation and use in Server racks, Wall Mount Cabinet, 19'' is standard horizontal installation length, it has horizontal and vertical two installation method, to meet actual requested. Height include:1U/1.5U/2U, and 1U/1.5U is very popular in the market.
Housing case/shell include Aluminum-alloy and plastic, to meet different prices requirement. Function modules and various power socket, and input plug is optional, welcome to OEM!
PDU, Power Distribution Unit For Cabinet, it is specially Designed For 482.6mm(19’’) Cabinets
Internationally Standard
Metal construction, perfect heavy duty power strips for workshop, enclosed garages, offices and schools
PDU POWER STRIP, POWER SOCKET
The network grade full metal rack-mount PDU power strip, and the power strip with 2meter power cord, and the power strip with 6-outlet.
This PDU power strip is used in a very wide range, such as server rack enclosure, cabinet, work bench, wall mount, under counter and other mount-installation applications.
Power Switch
Also with power off switch, can be manually turn off power connection.
One Long Power Cord Makes All the Difference
The 2 meter power cord gives you the added convenience of being able to plug in the power bar almost anywhere without having to use an extra extension cord.
SPECIFICATION
Rated Voltage: 250V～/60Hz
Max Current: 16A
Operation Temperature: -10℃ to +40℃
Storage Temperature: -10℃ to +60℃
Working Humidity: 5%(0℃)～90%(40℃)
| Thickness of The Unit | 1U |
| Housing case | Aluninum-Alloy/ Plastic |
| Color | Black/Silver |
| Output Module No.s | 6ways |
| Socket Type | Germany |
| Rated Current | 16A |
| Rated Voltage | 250V |
| Max. Power | 4000W |
| Function Module | Switch |
| Input Power lead | 3G x 1.5mm² X 2Mtr |
| Installation Method | Horizoantal/Vertical |
