Optical Splitter PLC 1x8

Optical Splitter PLC 1x8

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers.

Item Model: PLC 1x8

FOB Port: NINGBO

MOQ: 50PCS

Lead Time: 10DAYS

Contact

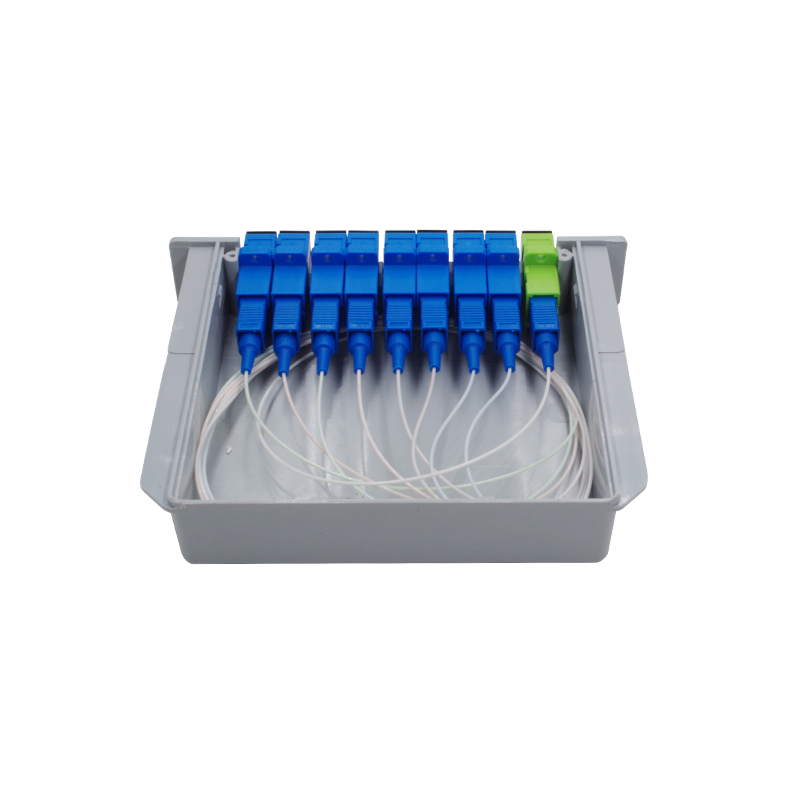

Fiber Optic FTTH PLC Splitter Box with Sc 1X8 Waveguide Type Optical Splitter
Features:
1. Good Uniformity
2. Not Sensitive to wavelengths
3. Low Polarization loss
4. Reliable
5. Smaller size

TECHNICAL DATA:

Working wavelength
1260*1650nm
Test wavelength
1310&1490&1550nm
Insertion loss
≤10.5dB
Channel uniformity
≤0.8dB
Polarization dependent loss (PDL)
≤0.2dB
Directivity
≥55dB
Return loss
≥55dB(APC);≥50dB(UPC)
Repeatability
≤0.1dB
Interchangeability
≤0.2dB
Operating temperature
-40 to 85 degree
Item
1x2
1x4
1x8
1x16
1x32
1x64
Max. insertion loss(dB)
4.1
7.4
10.5
16.8
17.0
20.4
Max. Channel uniformity(dB)
0.6
0.6
0.6
0.6
0.8
1.0
Max. PDL(dB)
0.2
0.2
0.2
0.2
0.2
0.3

Related Products you may be interested!

1x4 PLC Splitter

Mini PLC 1x8

10/100 Mbps Single/Dual Fiber Media Converter

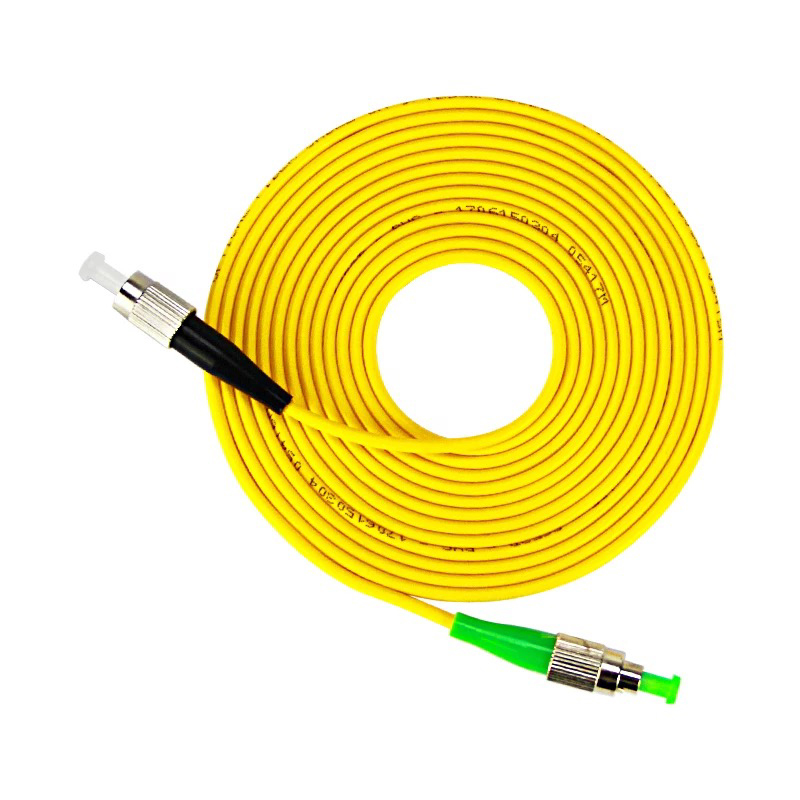

SM Simplex Fiber Optic Patch Cord, FC(APC)-FC(UPC)
